How to calculate circular slab reinforcement

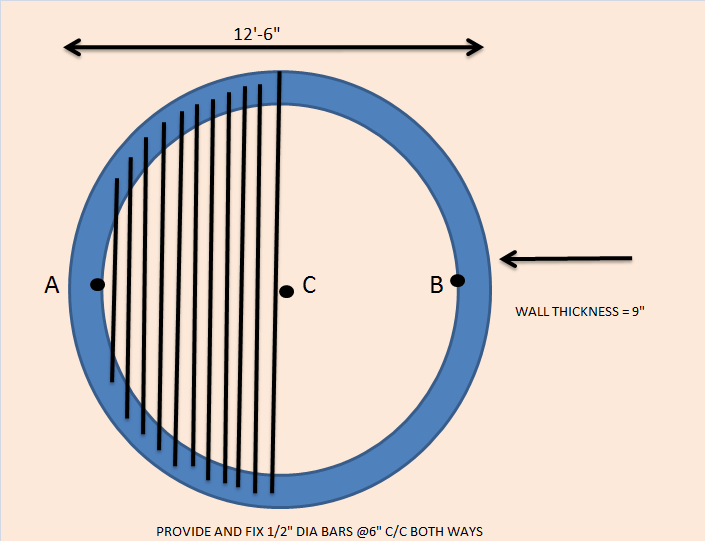

Suppose we have a circular slab having internal diameter of 11'-0" and external diameter as 12'-6" (including both walls) and RCC slab having 1/2" dia bars @ 6" c/c both ways.

So solving this example we will use following formula

Spacing of  bars will be started from point "A" and will be gradually increased adding each bar from point "A" towards Points "C" .This process will provide us half reinforcement of single layer and 1/4th of two layers of reinforcement.



L =  2 (( 2R-S)S))^1/2

L =  Length of  each bar with respect of positioning of bar from points ''A" and "B"

S = Spacing of each bar from point "A" towards point  "C" OR Spacing of each bar from point "B" towards point  "C".

R =Effective radius slab (Clear span of slab + two bearings for MS bars.

L =  2 (( 2R-S)S))^1/2

Before putting values in above listed formula let me check the correctness of  formula by checking the length of central bar adding 2 bearings of 4.5"as it will be 11'-0" + 2(4.5") = 11'-9"

Trial for central bar will be done as follows

L =  2 (( 2R-S)S))^1/2

L= 2x ((2x5.875-5.875)5.875))^1/2

=2x ((34.5156))^1/2

=2x (5.875)  = 11.75'

So the formula is correct to calculate the length of all bars



Bar-1 at 6"  = L= 2x ((2x5.875-0.5) 0.5))^1/2 =4.743'

Bar-2 at 1'= L= 2x ((2x5.875-1) 1))^1/2 =6.557'

Bar-3 at 1.5'= L= 2x ((2x5.875-1.5) 1.5))^1/2 =7.842'

Bar-4 at 2'= L= 2x ((2x5.875-2.0) 2.0))^1/2 =8.831'

Bar-5 at 2.5'= L= 2x ((2x5.875-02.5) 02.5))^1/2 =9.617'

Bar-6 at 3'= L= 2x ((2x5.875-3.0) 3.0))^1/2 =10.25'

Bar-7 at 3.5'= L= 2x ((2x5.875-3.5) 3.5))^1/2 =10.75'

Bar-8 at 4'= L= 2x ((2x5.875-4.0) 4.0))^1/2 =11.135'

Bar-9 at 4.5'= L= 2x ((2x5.875-4.5) 4.5))^1/2 =11.423'

Bar-10 at 5'= L= 2x ((2x5.875-5.0) 5.0))^1/2 =11.618'

Bar-11 at 5.5'= L= 2x ((2x5.875-5.5) 5.5))^1/2 =11.726'

Common Bar-12 at 5.875'= L= 2x ((2x5.875-5.875) 5.875))^1/2 =11.75

Length of one side bars from Point "C" (Excluding central bar) = 104.50 Ft

Length of one mesh  (Including central bar) = 2x104.50 Ft+11.75 =220.75 Ft

Length of 2- Meshes (Main and Distribution bars) = 2x220.75=441.50 Ft

Weight of bars = Total Length of Bars x Unit Weight in Unit length

Weight of 1/2" dia bar in One Ft length = 0.302 Kg/Ft

Weight of bars = Total Length of Bars x Unit Weight in Unit length

                          = 441.50 x 0.302 = 133.33 Kgs

Add 3% for wastage margin =133.33x1.03 = 137.33 say 138 KGS





Thursday, August 12, 2021

What is slump in concrete



Slump is vertical settlement of the concrete after the mould has been withdrawn and the vertical difference between height of mould and the highest point of subsided concrete.

Following slump test apparatus is used to do slump test.


The apparatus for determining the slump includes following items

1- Slump Cone ( Steel mould in form of a truncated cone).


2- Tamping Rod (Is used to tamp the slump cone and for Roding of concrete

3-Measuring Tape (measure vertical displacement of concrete after removal of cone)

4-Smooth Surface Sheet (Provides smooth surface to keep slump cone vertical).

5-Trowel. (Used to Fill the concrete in cone).

6-Hand Level (after removal of cone Hand level is placed horizontally over the Slump cone to measure vertical displacement of concrete.)

Testing Procedure

Place the slump cone on leveled sheet and fill the cone with concrete in 3" consecutive layers with Roding to compact concrete until it fills up to the top of cone. During filling of concrete cone should be in hold with placing of feet on lower pedestals and may be lifted above holding the hooks fixed in the middle of the cone. Now after removal of cone place the cone near settled concrete and place the hand level on the top of cone extending up to the top of concrete and then measure vertical displacement with measuring tape.

What should be the slump of concrete.

Although the slump test is not entirely satisfactory since it gives widely varying results and also does not give a true measure of workability but it is of value in the field as a control test and is useful in comparing the consistence of successive batches of concrete made with the same ingredients ,and is one of the simplest tests to carry out at site. Provided no change is made in the aggregate or it's grading ,slump tests will indicate whether correct water and cement contents are being maintained. For a given slump  and aggregate grading, water required for the unit volume of concrete is constant irrespective of the change of the cement content.

The amount of the slump depends not only on the amount of water in the mix but also on the nature of aggregates ; rounded stones give a greater slump than angular stones for the same mixture.

Recommended values for slump in Millimeters.

S No

Types of Work

With Vibrations

Without Vibrations

1

Mass Concrete, Large sections, roads

10 to 25

50 to 75

2

Foundations ,Footings ,Sub-Structures, Walls and other heavy sections.

26 to 50

40 to 115

3

Thin Sections such as slabs ,columns, beams with congested reinforcements

40 to 80

100 to 175



How slump is recommended ?

This is very important to understand about the practical recommendations of slump and here is the details which includes Selections of materials and proceeding with job mix formula with number of hit and trial tests to obtained required strength of concrete. During each test of job mix slump test has been conducted and recorded in laboratory and when that slump is recommended on which designed strength of concrete has been obtained.

Types of Slump

There are three types of Slumps .


True slump refers to common drop of the concrete mass evenly all around without collapse.

Shear slump indicates that the concrete lacks cohesion. It may undergo segregation and bleeding and thus is undesirable for the durability of concrete.

Collapse slump indicates that concrete mix is too wet and the mix is regarded as harsh and lean.




This Blog contains supporting images which are property of Google only.




Effect of water-cement ratio on strength of concrete



The workability of concrete increases as water content of mix increased, water lubricates the mixture of concrete. But increase in water content causes the decrease in strength of concrete .Excessive use water weakens the concrete ,produces shrinkage cracks and decreases density of concrete.

 Water occupies the space in concrete and as it evaporates it leaves voids and cracks which decrease the strength of concrete. The volume of water voids may be as much as 10 percent of the total volume of concrete. An excess of 10 percent of water may reduce the strength by about 15 percent and an excess of 30 percent of water may reduce the strength up to 50 %. Lower the water content the stronger the concrete but quantity of water must be sufficient to produce a workable mix required for particular method of compaction to be adopted for concreting.

Concrete made with low water cement ratio is unworkable. If stiff or dry concrete is used then honey-combing will result decrease in density and strength. An unworkable concrete results in incomplete compaction giving rise to air voids. If 5% Air voids exists in concrete may cause 30 % strength loss and 10 % air voids may cause as much as 50 percent strength loss.

Water Cement Ratios Adopted for different mix of Concretes.

S No

CONCRETE MIX

WATER CEMENT RATIO

QUANTITY OF WATER IN LITERS

REMARKS

1

(1:1:2)

0.42 TO .54

21 TO 27

For vibrated concrete ,the quantity of water may be reduced by about 20 %

2

(1:1.5:3)

0.52 TO 0.60

26 TO 30

3

(1:2:4)

0.58 TO 0.64

29 TO 32

4

(1:3:6)

0.68 TO 0.72

34 TO 36

5

(1:4:8)

0.90 TO 0.94

45 TO 47









Therefore there is an optimum value of water cement ratio for every mix which should only be decided after properly adopting of job mix formula, and water content has to be restricted within certain minimum limits. Concrete should be plastic to be worked around the reinforcement rods.


Sometime strength has to be sacrificed by adding more water to obtain higher degree of workability where concrete has to be placed in narrow and thin RCC sections.
The best mix is the one which gives the maximum workability with minimum amount of water .An increase in water content must be accompanied by proportionate increase of cement if strength is to be maintained.


Hydration of cement is incomplete without an adequate quantity of water, Less water impedes complete setting of cement and decreases the strength of concrete. The amount of water required to complete the hydration of cement is about 25 % of the weight of the cement.
Generally the water cement ratio for Concrete (1:2:4) mix is 0.60 ,Concrete (1:1.5:3) mix is 0.50 and for concrete mix (1:1:2) mix is 0.45.

Water Cement Ratio Formula





The Ratio between weight of water and weight of cement is called water cement ratio.

Formula of water cement ratio is given below

WCR =  W/C

Water Cement Ratio = Weight of Water / Weight of cement

Water cement ratio is mathematical expression having no units but it can be expressed in percentage for example if we find WCR =.6 using job mix formula ,the amount of water may be calculated from formula as below.

 WCR =  W/C

Water Cement Ratio = Weight of Water / Weight of cement---------Eq.no.1

Putting Values in Eq.no.1 considering Weight of One bag of cement.

 0.6= (Weight of water /50 Kgs)

Weight of water = 0.6 x 50 Kgs = 30-Kgs

Here we knows that 1Kg = 1 Liter

So we can say according to designed WCR 30-Liters or 30-Kgs of water will be added to concrete mix.

WCR is designed formula for use of water in concrete mix with respect of weight of cement and it is very important for workability and strength of concrete. More water in concrete improves workability (Ease in concreting) of concrete but on other hand it decreases the strength of concrete.

Roughly Water Cement Ratio for Concrete (1:2:4)  = 0.60

                                                  Concrete (1:1.5:3)  = 0.50

                                                     Concrete (1:1:2)  = 0.45


This Blog contains supporting images which are property of Google only.
